The Asse 1022 Dual Check Valve is a small-footprint, code-aware solution for potable water backflow protection. It helps prevent contaminants and corrosive substances, such as carbonic acid, from entering drinking water. Using an approved device helps safeguard potable supplies while supporting compliance with local and national plumbing requirements.
Asse 1013
Backflow preventer manufacturers, including Watts, make devices that are built to meet ASSE performance requirements and recognized certifications. These may include NSF/ANSI 61 and UL/FM approvals. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. While some jurisdictions require higher-protection assemblies, the Asse 1022 can serve as a reliable low-hazard option where allowed.
The Asse 1022 Dual Check Valve is valued for its small footprint, simple installation, and low maintenance costs. This guide compares Asse 1022 devices alongside higher-protection standards, including Asse 1013. It also outlines selection, installation, maintenance, and compliance steps so the unit can meet plumbing-code expectations and industry guidance.
Backflow Basics And The Role Of Dual Check Valves
Backflow is a significant threat to water systems because it allows treated water to move backward. That backward flow may carry contaminants into potable lines and reduce the safety of drinking water. Local water authorities and adopted codes require measures that prevent this contamination.
Backflow usually happens because of one of two hydraulic conditions. Backsiphonage occurs when supply pressure falls, creating suction that can draw water in reverse. Backpressure happens when downstream pressure exceeds supply pressure and forces water in the wrong direction. Knowing the difference between backsiphonage and backpressure matters because each condition can call for a different type of protection.
Residential cross-connections often involve irrigation systems, garden hoses, boilers, and chemical injectors. Commercial settings add booster pumps, closed-loop HVAC systems, and process equipment. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves, including the Asse 1022 model, are designed for low-hazard protection. They are used where reverse flow might affect taste, odor, or water quality without creating a direct health hazard. The Asse 1022 Backflow Preventer is a compact solution for many applications identified in plumbing codes.
Proper device selection and installation are guided by codes and standards. ASSE performance requirements and ANSI-accredited development support product acceptance. Installers must follow local plumbing code language, including references such as the 2018 UPC and AWWA M-14, when installing Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. Where hazards are higher, more protective devices are required.
| Problem | Common Cause | Suggested Protection |
|---|---|---|
| Backsiphonage | Negative supply pressure caused by line breaks, mains work, or heavy demand | Asse 1022 Backflow Preventer or air gap where required |
| Backflow caused by pressure imbalance | Pressure created by booster systems, elevated storage, or heated closed systems | Asse 1022 for low-hazard; RPZ for high-hazard |
| Potable water contamination risk | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Classify the hazard and use Asse 1022 or a higher-protection assembly |
How Backflow Occurs In Plumbing Systems
Backflow means water moves in reverse from a fixture, device, or private system toward the public supply. It can be caused by negative pressure or excessive downstream pressure. Both conditions can introduce contaminants and threaten potable water quality.
Why Low-Hazard Systems Use Dual Check Valves
Dual check valves provide two independent check mechanisms in one body. This redundancy protects low-hazard cross-connections against reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Asse 1022 Dual Check Valve Overview

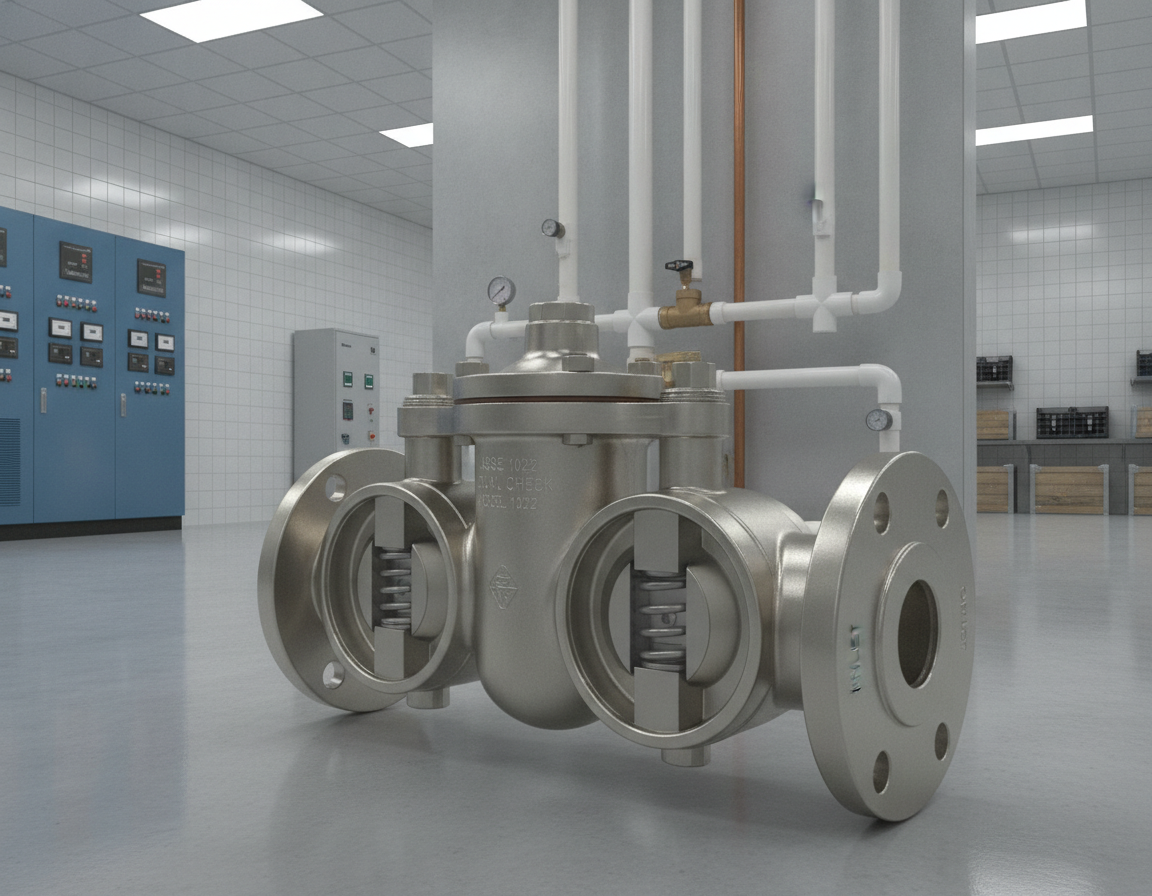

An Asse 1022 Dual Check Valve is a compact backflow prevention device used for low-hazard potable-water applications. It features two independent, spring-loaded check valves in series. That arrangement helps stop reverse flow and gives the device a second sealing point. It also supports serviceability while reducing contamination risk during pressure changes, brief backpressure events, or short disruptions.
Functional Overview And Main Features
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. This design reduces maintenance time and lifecycle costs.
Manufacturers offer units in several materials, including bronze, brass, corrosion-resistant metals, and engineered plastics. Sizes match standard pipe diameters and pressure ratings for municipal and commercial potable-water systems.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. An Asse 1022 Backflow Preventer can fit into tight locations where larger backflow assemblies may not be practical. Properly sized models can meet flow demands for common low-hazard applications.
Standards And Certifications Supporting ASSE 1022 Devices
ASSE standards establish baseline performance tests and functional thresholds. These tests verify reliable operation. Many products exceed these minimums, reducing failure risk and extending maintenance intervals.
NSF/ANSI 61 certification confirms materials are safe for drinking water and helps prevent harmful contaminant leaching. UL/FM approvals can support confidence in durability, pressure resistance, and stress-tested performance. These listings give engineers, inspectors, and installers additional assurance when specifying equipment.
Together with ANSI-accredited standards development, these approvals can improve acceptance of an Asse 1022 Dual Check Valve in specifications and code reviews. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
Comparison With Related Standards And Products: ASSE 1013, ASSE 1012, ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It highlights practical differences between RPZ, double-check, and other dual-check devices used in the United States.
Device selection should start with a clear hazard-level assessment. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. In contrast, Asse 1013 RPZ devices are intended for high-hazard cross-connections where contamination could threaten health. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
ASSE 1022 Versus ASSE 1013 And ASSE 1024
ASSE 1022 double-check devices rely on two check valves, and where applicable shutoff valves, to control backflow in low-hazard uses. ASSE 1013 RPZ assemblies add a relief valve that vents to atmosphere under certain pressure conditions, creating a higher protection margin. Asse 1024 reduced-pressure principle devices use the same relief concept but apply to a broader set of severe contamination risks.
Testing frequency and complexity differ between these products. RPZ units under Asse 1013 require more rigorous annual and post-event testing with relief valve verification. Double-check assemblies under ASSE 1022 require periodic testing to confirm both checks operate, with simpler procedures than RPZ testing.
When ASSE 1012 Or Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Choose this standard when local code or the water authority allows a dual-check format but requires a recognized standard beyond ASSE 1022.
Codes vary by jurisdiction. Many municipalities following the 2018 UPC require ASSE 1013 RPZ for high-hazard cross-connections. Utilities may accept ASSE 1022 in low-hazard cases or require Asse 1012-certified dual-check devices for certain service lines. Before installation, confirm the required protection level with the local water authority or authority having jurisdiction.
| Feature | ASSE 1022 Device | Asse 1013 (RPZ) | Asse 1024 | ASSE 1012 Device |
|---|---|---|---|---|
| Primary use | Low-risk potable-water cross-connections | Health-hazard cross-connections requiring RPZ protection | Severe backflow hazards needing relief-valve protection | Specific dual-check uses allowed by local authority |
| Relative protection | Low hazard | High hazard | High hazard | Low or moderate hazard |
| Atmospheric relief | Not included | Includes atmospheric relief valve | Includes reduced-pressure relief valve | Usually no relief valve unless required |
| Testing approach | Periodic check valve testing | Annual and post-event testing with relief verification | Regular testing with relief-valve checks | Testing as required by the water authority |
| Common applications | Residential irrigation and selected HVAC makeup lines | High-hazard systems involving toxic or harmful fluids | Serious contamination scenarios with possible health impact | Service-line applications where dual-check protection is accepted |
| Authority preference | Often allowed for low-hazard applications | Commonly required for high-hazard conditions | Used where serious contamination protection is required | Selected where code or utility language specifically calls for it |
When comparing ASSE 1022 with RPZ assemblies, consider the hazard level, safety margin, and testing burden. The choice between RPZ and double-check protection depends on hazard classification, local plumbing code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installation, Maintenance, And Code Compliance
Proper Asse 1022 installation begins with thorough planning. Dual check valves should be installed where they are accessible and oriented according to the manufacturer’s instructions. Maintain enough space for service, testing ports, and unions. This lets certified testers access fittings without unnecessary disassembly.
Follow good piping practices to avoid introducing new hazards. Do not place the device where downstream cross-connections can bypass or undermine the protection. Install shutoffs, unions, and drain provisions according to manufacturer instructions and local codes. Make sure unions and test cocks remain accessible for routine service and backflow testing.
Maintenance intervals are usually determined by local regulations, water authority rules, and site requirements. Many areas require annual inspections and backflow tests by certified professionals. Clear records of service, repairs, and test results help demonstrate compliance during audits, inspections, and permit reviews.
Certified testers can provide documentation that meets many regulatory and water-authority requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Selecting devices with recognized listings can simplify inspection and approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance may also be important for commercial, industrial, or fire-protection connections that require third-party recognition.
Before starting, identify the applicable plumbing code edition and local water authority requirements. Some locations may require an RPZ instead of a dual check. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Establish a consistent record-keeping routine. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This simplifies future inspections and supports transparent compliance during regulatory reviews.
Where To Buy And Product Selection Guidance
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Make sure the Asse 1022 Dual Check Valve fits the pipe diameter and peak flow. Also compare pressure ratings with maximum working pressure and expected surge conditions.
Material compatibility is essential for potable water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Check manufacturer data for chemical resistance, especially if local water chemistry is aggressive or unusual.
Verifying certifications can make approval and inspection easier. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If the local authority requires UL or FM approvals, verify those markings before buying.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers provide genuine parts, documentation, and warranty support. Installation Parts Supply is a reputable distributor that stocks certified units and can help with model selection.
Warranty terms and pricing policies affect final cost. Check manufacturer warranty limits, authorized-sale requirements, and MAP pricing rules that may prevent online price display. Some suppliers show final pricing only in the cart while still preserving warranty coverage through authorized sales channels.
How To Choose Materials
- Match pipe size and flow to the Asse 1022 Dual Check Valve model.
- Prefer components with NSF/ANSI 61 certification for potable systems.
- Check the Asse 1022 Backflow Preventer pressure rating and surge tolerance before installation.
Reliable Supplier Tips
- Purchase from certified or authorized dealers so documentation is available for inspections.
- Choose vendors that offer sizing support and warranty handling.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Point | Details to Confirm | Reason It Matters |
|---|---|---|
| Pipe size and flow | Pipe diameter, GPM requirements, model sizing chart | Prevents pressure loss and ensures proper operation |
| Material | Approved metals or certified plastics for potable water | Protects potable water quality and resists corrosion |
| Pressure and surge capacity | Rated operating pressure plus expected surge tolerance | Supports safe operation during everyday use and pressure spikes |
| Certifications | Required approvals for code, utility, or project specifications | Simplifies permitting and meets code requirements |
| Distributor or dealer | Supplier reputation, product authenticity, and technical help | Ensures genuine Asse 1022 Backflow Preventer and post-sale support |
| Warranty terms and pricing rules | Manufacturer warranty details, MAP pricing policies | Prevents surprises and supports long-term ownership |
Final Thoughts
ASSE 1022 double-check valves can be compact solutions for low-risk backflow prevention when approved by the local authority. The Asse 1022 Dual Check Valve uses two spring-loaded checks and materials that meet NSF/ANSI 61 and ASSE standards. This helps reduce contamination risk in approved uses such as irrigation systems and certain HVAC makeup lines.
Choosing the right device depends on hazard level and code compliance. An Asse 1022 Backflow Preventer is appropriate for low-hazard scenarios where it is allowed. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Correct selection can simplify permitting, reduce rework, and improve potable-water protection.
To ensure backflow prevention compliance, follow manufacturer guidelines and local plumbing codes. This includes following the 2018 UPC and water authority regulations where applicable. Buy certified products from trusted suppliers or authorized dealers. Verify ASSE, NSF/ANSI 61, and UL or FM listings for approvals and reliability.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. When supported by certified devices and qualified testers, these steps help protect potable water. They also make regulatory acceptance, inspection, and documentation easier. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
